Picture Window Configurations
Every picture window is a fixed pane, but how it's framed and what sits around it changes the price, the look and how the room breathes.
Single Large Fixed Lites
One big pane in one frame gives the most glass and the least frame per dollar, because there's no sash, balance or lock to build. HomeGuide puts installed picture windows at $20 to $50 per square foot nationally. The tradeoff is air: the Department of Energy notes that a fixed pane is airtight when installed properly but no use where you need ventilation or an escape route. It suits a living room facing a yard, a stair landing or a wall where nobody would open a window anyway.
Picture Windows With Operating Flankers

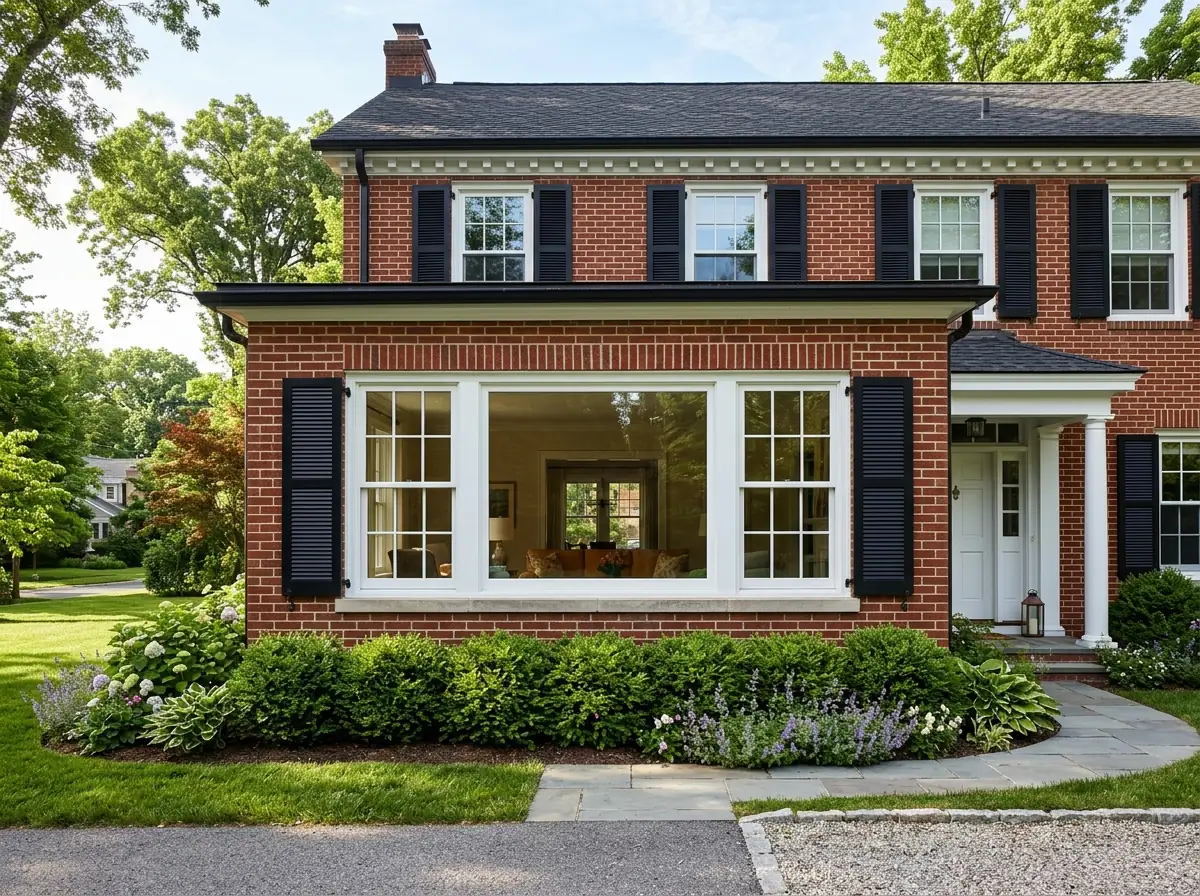

The common fix for "no air" is a pair of flankers: narrower casements or double-hungs on each side of the fixed center, mulled into one opening. Casement flankers keep the frame lines slim and seal tightly. Double-hung flankers suit a colonial facade where every other window is a hung sash. Ask for the flankers' sash heights and grille lines to line up with the center unit, or the group reads as three different windows.
Picture Windows Under a Transom
In a room with a high ceiling, a transom stacked over the picture window fills the height without one oversized, hard-to-handle pane. The transom can be a rectangle, a half-round or an arch, fixed or venting. Shapes and venting options are covered on our transom windows page. HomeGuide notes that arched, round and custom shapes cost more to make than a standard square unit, so a rectangle is the budget choice.
Direct-Set and Sash-Set Frames

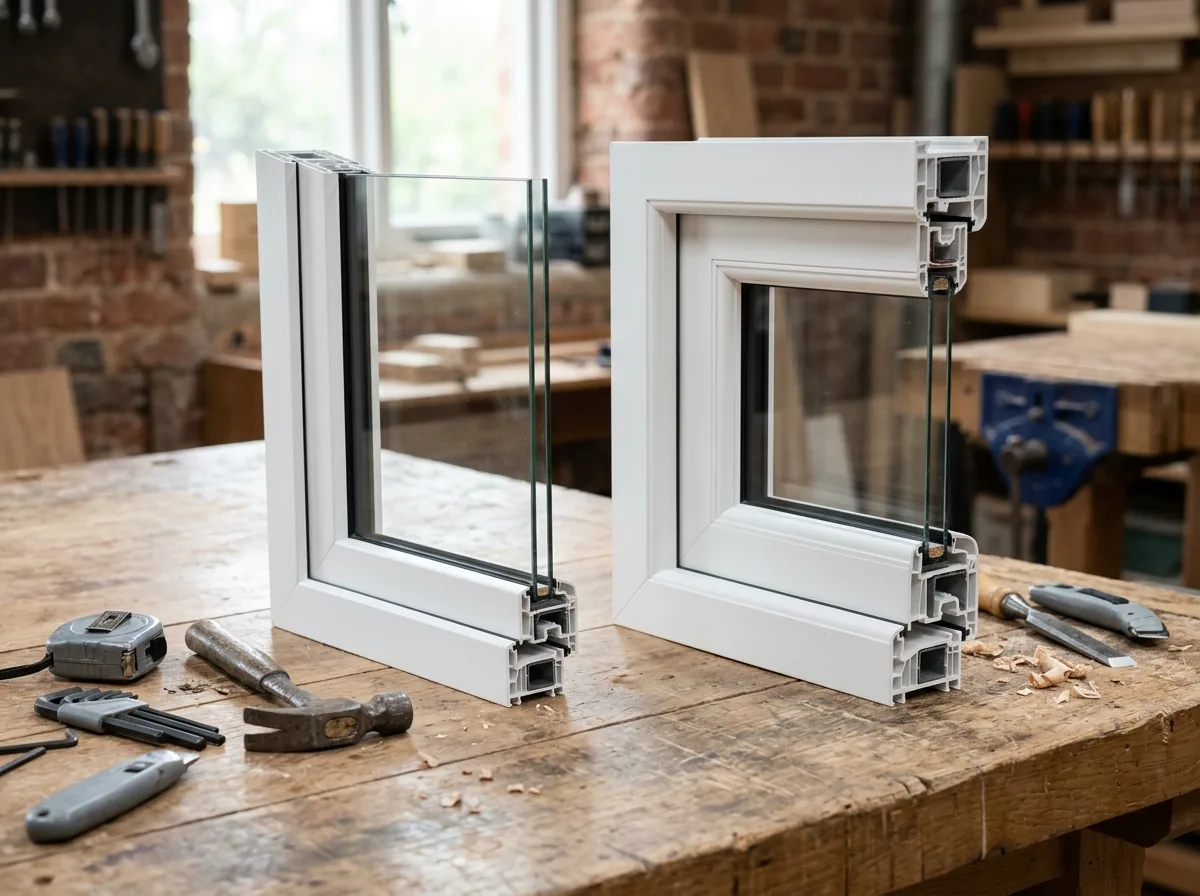

A direct-set unit has the glass glazed straight into the frame, so the frame is slim and the visible glass larger. A sash-set unit puts the glass in a fixed sash inside the frame, which costs a little more but matches the frame width of operating windows next to it. Our view: use direct-set when the picture window stands alone, sash-set when it sits in a row of casements or hung windows.
Big-Lite Glass: Tempered, Laminated and Low-E
A large, low pane near a walkway can count as a hazardous location that needs safety glass; the rules are on our sliding glass doors page. Laminated glass holds together on its interlayer if it breaks, and it comes up again for street noise on the energy-efficient page. Low-E coatings are worth choosing by the wall the window faces, and the energy-efficient windows page explains the ratings.
Why Richmond homeowners call Richmond Expert Windows
- A single independent window contractor gets your request, never a lead auction
- Every opening is measured on site before a number is put on paper
- Ask for the quote in writing: unit series, glass package, install method
- Homeowners pay nothing for the referral or the visit
Picture Window Cost by Size
National ranges only; no source publishes a Richmond price. HomeGuide puts a replacement picture window at $300 to $1,300 installed, made up of roughly $200 to $800 for the unit and $100 to $500 for labor. Size moves it most. HomeGuide's size table runs from $400 to $1,000 for a 48 by 60 inch unit to $720 to $1,800 for 72 by 72 inches and $960 to $2,400 for 96 by 72 inches.
Frame material, installed, by the same guide:
Vinyl
$200 to $900.Fiberglass
$550 to $1,600.Wood
$600 to $2,000.

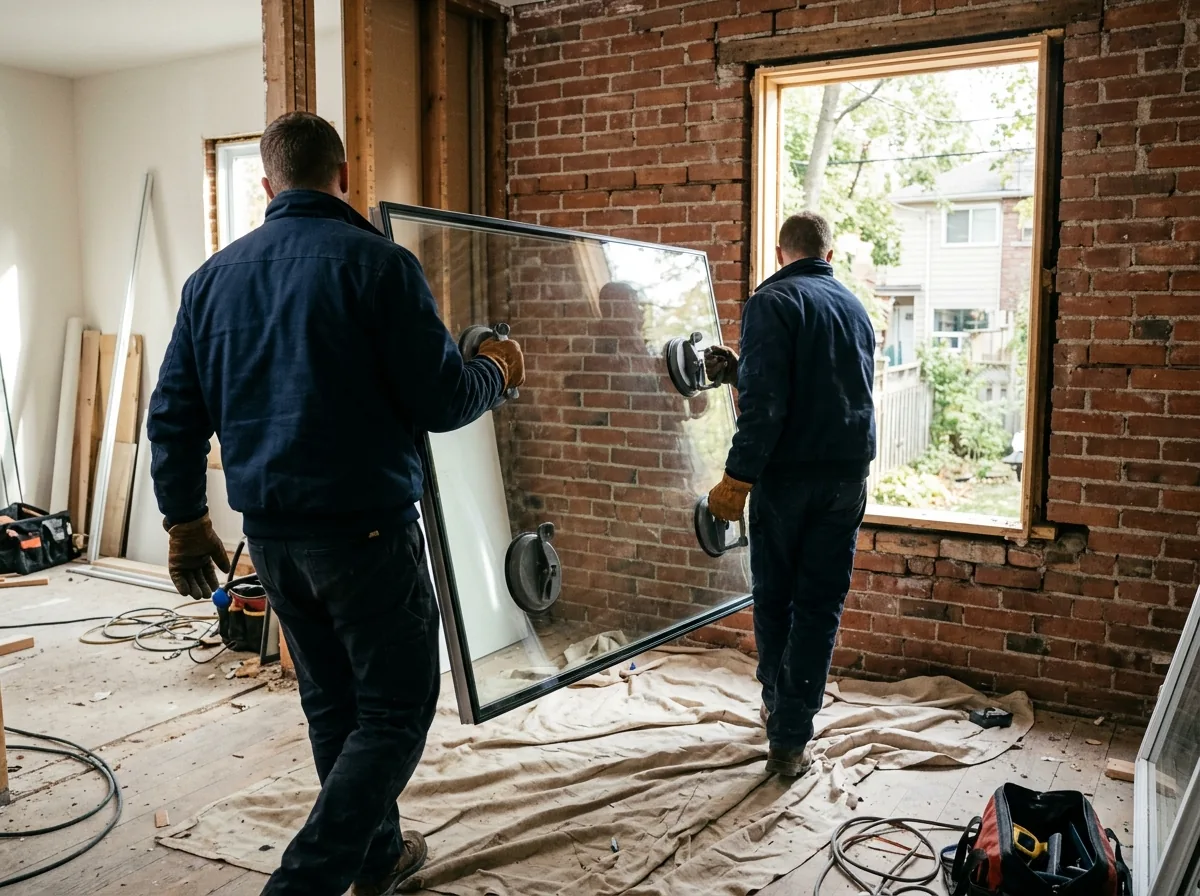

Big panes also add crew. HomeGuide notes that large picture windows are heavy and need extra people and lifting equipment, which shows up as labor on the quote. Flankers are priced as their own windows; HomeGuide lists casements at $400 to $3,000 and double-hungs at $350 to $2,500 installed.
Picture Window Replacement, Step by Step
- 1
Measure and check the opening
The installer measures in several places, checks the header over a wide opening for sag, and probes the sill. - 2
Choose the glass and order
Glass type, frame and any flankers are fixed on the order; a large unit is built to size, so the wait is mostly factory time. - 3
Remove the old unit
Old fixed glass often comes out in one piece; a sealed unit can weigh more than one person should carry. - 4
Set and shim
The new frame goes in on setting blocks so the glass sits on its bottom edge evenly, then it's shimmed plumb and square. - 5
Flash, insulate and trim
Sill pan or flashing tape, low-expansion foam in the gap, then interior trim and exterior capping or brickmold. - 6
Final check
Look for a level sightline across the mull joints and a continuous bead of sealant outside.
Picture Windows and Richmond Summer Sun
A wall of fixed glass works like a solar collector. July in Richmond averages a high of 89.5°F, and in a typical year about 45 afternoons hit 90°F or more. A big west-facing pane with the wrong coating can make a living room the hottest room in the house by late afternoon. Ask for the solar heat gain coefficient on the label before you pick the glass, and think about the overhang: a porch roof or deep eave shades a south pane in summer far better than it shades a west one.
Seal life deserves a thought too. InterNACHI's life-expectancy chart gives the seal of a double-pane unit 8 to 20 years, and when a big lite fogs, the replacement glass unit is the expensive part of the window. Ask whether the glass in the quote is a standard insulated unit a local glass shop could make again later, or a special order from the window maker. If an existing picture window has already clouded between the panes, our foggy window repair page covers replacing only the glass.
See Transom Windows in Richmond, VA for arch tops and shaped units that sit above a picture window.
See Awning Windows in Richmond, VA if you want a vent strip mulled under the fixed glass.
